Coaxial Cable Tests



    Upon seeing some unexplained voltage discrepancies in my receiving arrays I traced it down to varying characteristics of 75 ohm RG-6 type coaxial cable.

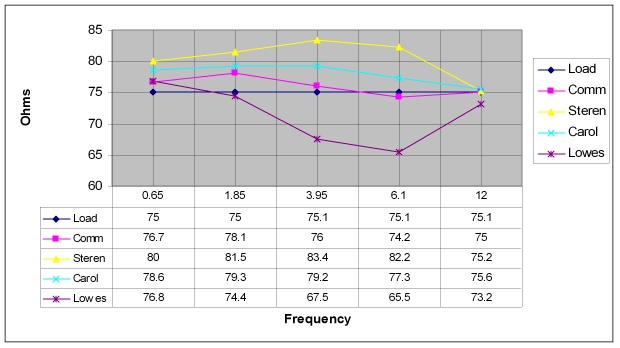

     The following table shows the results of a few tests using an N2PK Vector network analyzer.

    The tests were measuring the input impedance of the approximate 35 foot lengths of cable with the load at the other end.

Comm=good Commscope double shield

Steren=cheap single shield

Carol= cheap Home depot single shield

Lowes = not so cheap quad shield, it really measures CHEAP!!!
